Kieninger Clock K-Movements 1/4 hour

Clock K- Movements Enquiry Form

Kieninger K-Werke (1/4-Stunde)

Kieninger K-Movements (1/4 hour)

Kieninger K-Mouvements (1/4 heure) /Kieninger K-Movimientos (1/4 hora)

Allgemeine Merkmale / General features / Caractéristiques générales / Características generales

Platinenmaß 142 x 200 x 2,5 mm, 6 Bronze-Bouchons (Beisatztriebe), austauschbare Seiltrommeln, Palettenanker mit ruhender Hemmung

(Graham), Ankerautomatik, Seilaufzugsbegrenzungen, Gegengesperr (Gangreserve), getrennte Schlagabschaltung des Stunden- und

Melodieschlages mit Gewichtsablauf

Plate size 142 x 200 x 2,5 mm, 6 bronze bushings (2nd wheels), removable cable drums, pallet anchor with stationary escapement (Graham), automatic beat adjustment, cable winding stops, maintaining power, separate chime shut-off for hour and melody with weight drop. Click for full details below.

Mesure de platine 142 x 200 x 2,5 mm, 6 bouchons en bronze (pignons adjoints), tambeurs à câble échangeables, ancre à palettes avec échappement à repos (Graham), dispositif d'ancre automatique, délimitatiens mécanisme de remontage à cable, ressort d'entretien (réserve de marche), invalidation de sonnerie séparée pour heures et mélodies avec écoulement de poids

Medida de platinas 142 x 200 x 2,5 mm, 6 tapones en bronce (piñones intermedios), tambores de cable reemplazubles, áncora a paletas con

escape fijo (Graham), áncora automática, delimitaciones mecanismo de cuerda por cable, contrabloqueo (reserva de marcha), inactivación de

toques separada de los toques de horas y de melodías con terminación de curso de pesa

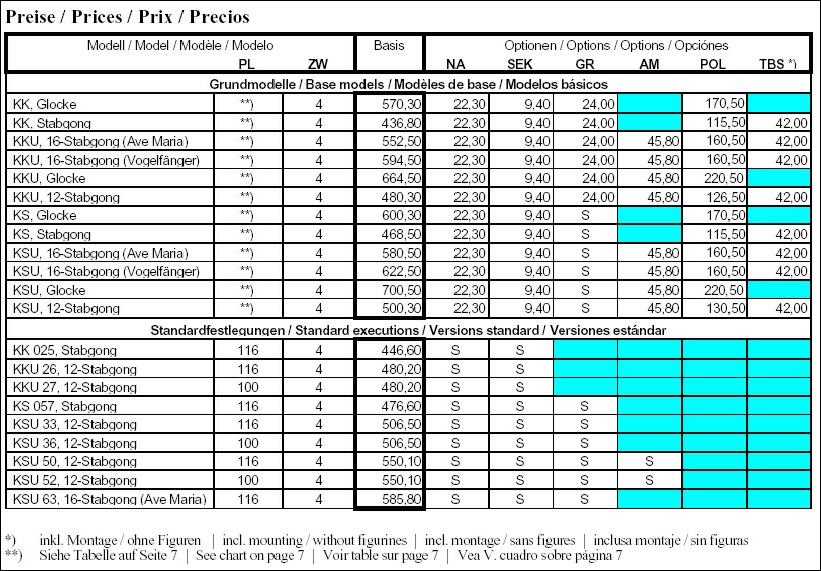

			Key	Set Value	Option
Standard Executions
Select No.	Model Qty	Chime type	SEK True Second	NA Auto Night Off	GR Maintaining Power	ZW Hand Shaft Length	Pendulum Number
1	KK 025	Rod Gong (8)	Standard	Standard		47.8 mm	3 to 8
2	KKU 26	Rod Gong (12)	Standard	Standard		47.8 mm	3 to 8
3	KKU 27	Rod Gong (12)	Standard	Standard		47.8 mm	9 to 14
4	KS 057	Rod Gong (8)	Standard	Standard	Standard	47.8 mm	3 to 8
5	KSU 33	Rod Gong (12)	Standard	Standard	Standard	47.8 mm	3 to 8
6	KSU 36	Rod Gong (12)	Standard	Standard	Standard	47.8 mm	9 to 14
7	KSU 50	Rod Gong (12)	Standard	Standard	Standard	47.8 mm	3 to 8
8	KSU 52	Rod Gong (12)	Standard	Standard	Standard	47.8 mm	9 to 14
9	KSU 63	Rod Gong (16) (Ave Maria)	Standard	Standard	Standard	47.8 mm	3 to 8

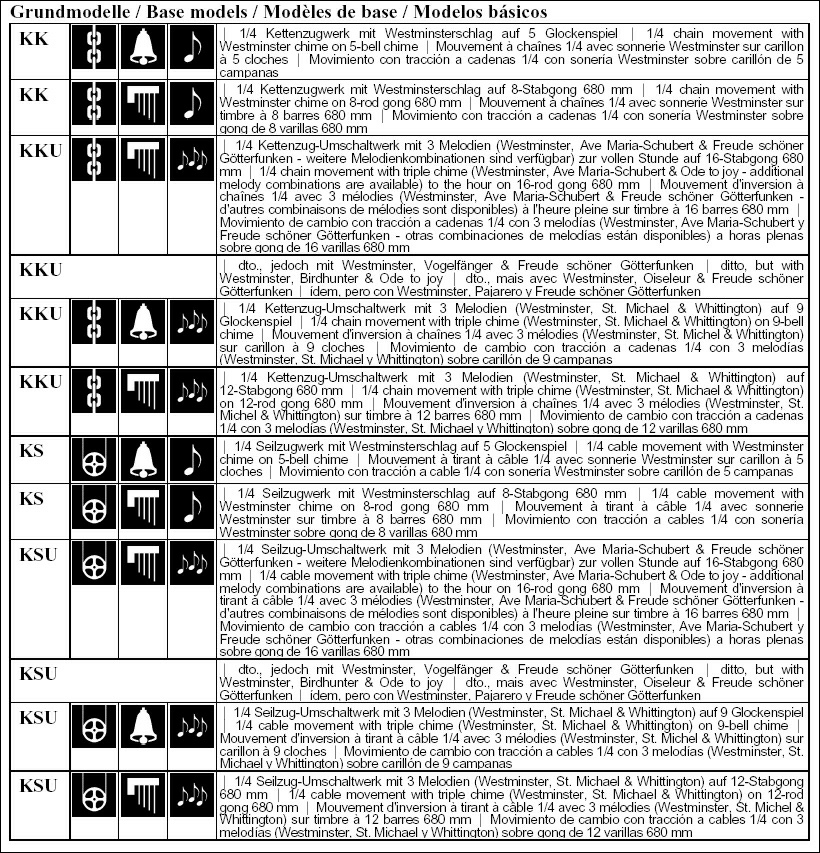

Base Model Options
Select No.	Model Qty	Chime type	SEK True Second	NA Auto Night Off	GR Maintaining Power	ZW Hand Shaft Length	POL Polished Execution	AM Auto Chime Sequence	TBS *) Dancer Module	Pendulum Number
10	KK	Bells (5)	Add	Add	Add	47.8 mm	Add			1 to 20
11	KK	Rod Gong (8)	Add	Add	Add	47.8 mm	Add		Add	1 to 20
12	KKU	Rod Gong (16) (Ave Maria)	Add	Add	Add	47.8 mm	Add	Add	Add	1 to 20
13	KKU	Rod Gong (16) (Bird Hunter)	Add	Add	Add	47.8 mm	Add	Add	Add	1 to 20
14	KKU	Bells (9)	Add	Add	Add	47.8 mm	Add	Add		1 to 20
15	KKU	Rod Gong (12)	Add	Add	Add	47.8 mm	Add	Add	Add	1 to 20
16	KS	Bells (5)	Add	Add	Standard	47.8 mm	Add			1 to 20
17	KS	Rod Gong (8)	Add	Add	Standard	47.8 mm	Add		Add	1 to 20
18	KSU	Rod Gong (16) (Ave Maria)	Add	Add	Standard	47.8 mm	Add	Add	Add	1 to 20
19	KSU	Rod Gong (16) (Bird Hunter)	Add	Add	Add	47.8 mm	Standard	Add		1 to 20
20	KSU	Bells (9)	Add	Add	Add	47.8 mm	Standard			1 to 20
21	KSU	Rod Gong (12)	Add	Add	Add	47.8 mm	Standard	Add		1 to 20

Pendulum Options
Select No.	Model	Type	Disk mm (Bob)	Nominal PL in cms	Beats Per Hour
1	P1	Lyre Etched	270	130	3436
2	P2	Lyre	270	130	3436
3	P1	Lyre Etched	270	116	3600
4	P2	Lyre	270	116	3600
5	P3a	Lyre	225	116	3600
6	P3b	Lyre	170	116	3600
7	P6a	Wooden	165	116	3600
8	P6b	Wooden	140	116	3600
9	P2	Lyre	270	100	3800
10	P3a	Lyre	225	100	3800
11	P3b	Lyre	170	100	3800
12	P6a	Wooden	165	100	3800
13	P6b	Wooden	140	100	3800
14	P6c	Wooden	115	100	3800
15	P2	Lyre	270	93	4000
16	P3a	Lyre	225	93	4000
17	P3b	Lyre	170	93	4000
18	P6a	Wooden	165	93	4000
19	P6b	Wooden	140	93	4000
20	P6c	Wooden	115	93	4000
