Accessories for Hechinger Quartz Clock Movements

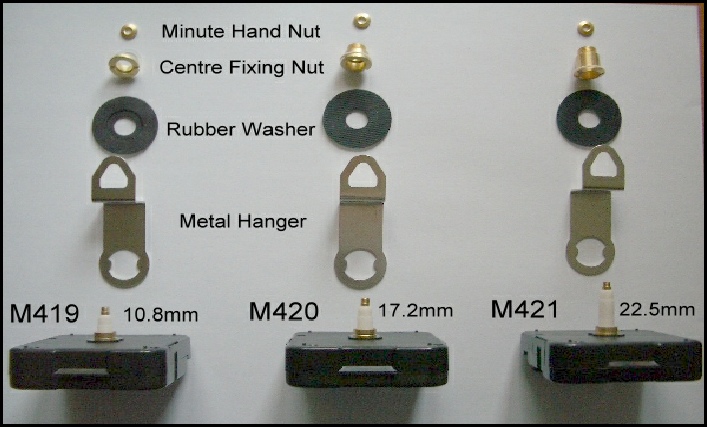

Hechinger Standard Quartz Clock Movements.

Available in three different spindle lengths and normally supplied with a rubber washer, securing nut and plastic washer, strong metal hanging bracket and a minute hand securing nut. However we at Timetips are now offering our customers even more choice by allowing you to choose from additional options.

M419 is 14.5mm spindle length, for 0.50mm to 3.00mm dial or case and is normally supplied with:

4mm Centre Fixing Nut
Brass Hand Retaining Nut Bored
1mm thick Rubber Washer

Alternatively it could be supplied with any combination below:

6mm Centre Fixing Nut
Black Hand Retaining Nut Bored
Black Hand Retaining Nut Solid
3mm Rubber Washer

M420 is 17.2mm spindle length, for 4.00mm to 7.50mm dial or case and is normally supplied with:

8mm Centre Fixing Nut
Brass Hand Retaining Nut Bored
1mm thick Rubber Washer

Alternatively it could be supplied with any combination below

10mm centre Fixing Nut
Black Hand Retaining Nut Bored
Black Hand Retaining Nut Solid
3mm Rubber Washer

M421 is 22.5mm spindle length, for 8.00mm to 11.0mm dial or case and is normally supplied with:
12mm Centre Fixing Nut
Brass Hand Retaining Nut Bored
1mm thick Rubber Washer

Alternatively it could be supplied with any combination below:

17mm centre Fixing Nut
Black Hand Retaining Nut Bored
Black Hand Retaining Nut Solid
3mm Rubber Washer

M224 Centre Nut Fixing Tool

A robust all steel centre nut fixing tool. Allows real control over the tightening up process without risk of damage to expensive dials. Fits all of the Hechinger range and other makes as well due to the two different end fittings. Click any of the three images to expand.
