Hechinger Standard Quartz Clock Movements

Hechinger W45KA

Standard Quartz Clock Movements

  1. German designed (manufactured in China)
  2. Easy assembly by centre nut fixing
  3. Hands can be set from front or rear
  4. Can be used with or without centre seconds hand
  5. Two year guarantee
  6. Separate Metal hanging Bracket
  7. “AA” Battery life about 1 year
  8. Supplied complete with all fittings

Available in three different spindle lengths

M419 - 14.5 mm spindle length  to suit Dial / Case thickness of 0.50 mm - 4.00 mm
M420 - 17.0 mm spindle length  to suit Dial / Case thickness of 3.00 mm - 9.00 mm
M421 - 23.5 mm spindle length  to suit Dial / Case thickness of 9.00 mm - 14.00 mm

Dial / Case thickness is minimum to maximum figures using either a 1 mm or 3 mm rubber washer (or combination of) and variable length centre fixing nut.

Hole size diameter in dial. Requires a 10 mm hole in the  Case / Dial to accept the centre fixing nut.


For a choice of Clock Hands please visit the Eurostyle hands pages from the navigation link above.

Fittings Available - see picture below:

Brass Centre Fixing Nuts. 4 mm - 6 mm - 10 mm,-12 mm -17 mm
Hand Retaining Nuts. Gilt Bored - Gilt Solid -Black Bored - Black Solid (Gilt bored normally supplied, required for centre seconds hand use).
Rubber Washers. 1.00 mm - 3.00 mm ( 1.00 mm normally supplied).
Plastic Washer for Centre Fixing Nut.
Metal Hanging Bracket.

             All movements supplied with a metal hanging bracket.

             If you require different fittings to the standard ones supplied - Please state this when you order or send us an email.



56 mm

56 mm

16 mm

Spindle lengths
14.5 mm
17.0 mm
23.5 mm

Rear view of clock movement

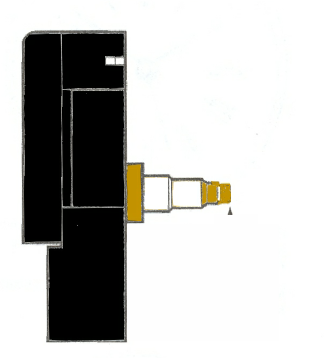

Side view of clock movement

Brass Minute Hand Fixing Nut

Brass Movement Centre Fixing Nut

Rubber Washer
1.0 mm or 3.00 mm

Metal Movement Hanging Bracket

Spindle length
14.5 mm

Spindle length
17.0 mm

Spindle length
23.5 mm

M419

M420

M421

Side View of Movements to show different component and spindle lengths

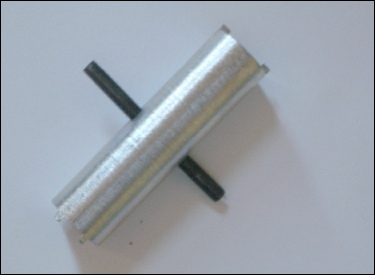

M224 - Steel Fixing Tool for Brass Centre Nut


A robust all steel centre nut fixing tool. Allows real control over the tightening up process without risk of damage to expensive dials. Fits all of the Hechinger range and other makes as well due to the two different end fittings.

Complete Fixing Tool




Magnified View 1st End




Magnified View 2nd End
