Kieninger Clock R-Movements 1/4 hour

Kieninger R-Werke (1/4-Stunde)

Kieninger R-Movements (1/4 hour)

Kieninger R-Mouvements (1/4 heure) / Kieninger R-Movimientos (1/4 hora)

Allgemeine Merkmale / General features / Caractéristiques générales / Características generales

Platinenmaß 131 x 131 x 2,0 mm, Federzugwerke mit 4 bzw. 6 Bronze-Bouchons (Beisatzräder), Steckachsen (Federhäuser) und

Frontaufzug, Tischuhrversion mit Echappement (Schweizer Ankergang), Pendelversion mit Palettenanker (Seil- & Federzug) Kieniramic7

Massivanker (Kettenzug) mit ruhender Hemmung (Graham), Ankerautomatik und Schlagabschaltung

Plate size 131 x 131 x 2,0 mm, keywind movements with 4 or 6 bronze bushings (2nd wheel), removable spring barrels and front winding, mantel clock version with escapement (Swiss escapement), pendulum version with pallet anchor (cable & key wind) or Kieniramic7 solid anchor (chain) with stationary escapement (Graham), automatic beat adjustment and chime shut-off

Mesure de platine 131 x 131 x 2,0 mm, mouvements à tirant à ressort avec 4 oú 6 bouchons en bronze (pignons adjoints), barrillets avec demi-arbre et mécanisme de remontage frontal, version d'horloge de table avec échappement (échappement suisse), version de pendule avec ancre à palettes (cable & tirant à ressort) ou Kieniramic7 ancre solide (tirant à chaine) avec échappement de repos (Graham), dispositif d'ancre automatique et invalidation de sonnerie

Medida de platinas 131 x 131 x 2,0 mm, máquina con tracción a muelle con 4 o 6 tapones de bronce (piñones intermedias), barriletes con semieje y mecanismo de cuerda frontal, versión de reloj de mesa con escape (escape suiza), versión de la péndola con áncora a paletas (tracción a cable & de muelle) o Kieniramic7 áncora solida (tracción a cadena) con escape fijo (Graham), áncora automática y inactivación de toque


Select No.	Model	Type	Disk mm (Bob)	Nominal PL in cms	Beats Per Hour	ZW Hand Shaft No.	Length mm
Select No.		Type	Disk mm (Bob)	Nominal PL in cms	Beats Per Hour	ZW Hand Shaft No.	Length mm
1	P1	Lyre Etched	270	130	3436	1	27.8
2	P2	Lyre	270	130	3436	2	31.8
3	P1	Lyre Etched	270	116	3600	3	35.8
4	P2	Lyre	270	116	3600	4	47.8
5	P3a	Lyre	225	116	3600
6	P3b	Lyre	170	116	3600
7	P6a	Wooden	165	116	3600
8	P6b	Wooden	140	116	3600
9	P2	Lyre	270	100	3800
10	P3a	Lyre	225	100	3800
11	P3b	Lyre	170	100	3800
12	P6a	Wooden	165	100	3800
13	P6b	Wooden	140	100	3800
14	P6c	Wooden	115	100	3800
15	P2	Lyre	270	93	4000
16	P3a	Lyre	225	93	4000
17	P3b	Lyre	170	93	4000
18	P6a	Wooden	165	93	4000
19	P6b	Wooden	140	93	4000
20	P6c	Wooden	115	93	4000
21	P3b	Lyre	170	80	4260
22	P5	Grid	140	80	4260
23	P6b	Wooden	140	80	4260
24	P6c	Wooden	116	80	4260
25	P6d	Wooden	100	80	4260
26	P7a	Metal	80	80	4260
27	P5	Grid	140	72	4500
28	P6b	Wooden	140	72	4500
29	P6c	Wooden	116	72	4500
30	P6d	Wooden	100	72	4500
31	P7a	Metal	80	72	4500
32	P5	Grid	140	65	4725
33	P6b	Wooden	140	65	4725
34	P6c	Wooden	116	65	4725
35	P6d	Wooden	100	65	4725
36	P7a	Metal	80	65	4725
37	P7b	Metal	70	65	4725

	Standard Executions

Select No.	Model	Chimes Sound On	Prices GB Pounds	SEK	NA	POL	ZW Hand Shaft Options	Pendulum Options
Select No.		Chimes Sound On	Prices GB Pounds	True Second	Auto Night Off	Polished Execution	ZW Hand Shaft Options
1	RK 014	Rod Gong (8)	356.35	Standard			35.8	21 to 26
2	RK 046	Rod Gong (8)	380.03	Standard	Standard		35.8	15 to 20
3	RK 047	Rod Gong (8)	380.03	Standard	Standard		47.8	3 to 8
4	RWS 13	Rod Gong (8)	444.52	Standard	Standard		31.8	32 to 37
5	RWS 25	Rod Gong (8)	546.37	Standard	Standard	Standard	47.8	3 to 8
6	RWS 31	Rod Gong (8)	444.52	Standard	Standard		47.8	4 to 8
7	RWU 04	Bells (9)	872.12	Standard	Standard	Standard	35.8	59

drs\

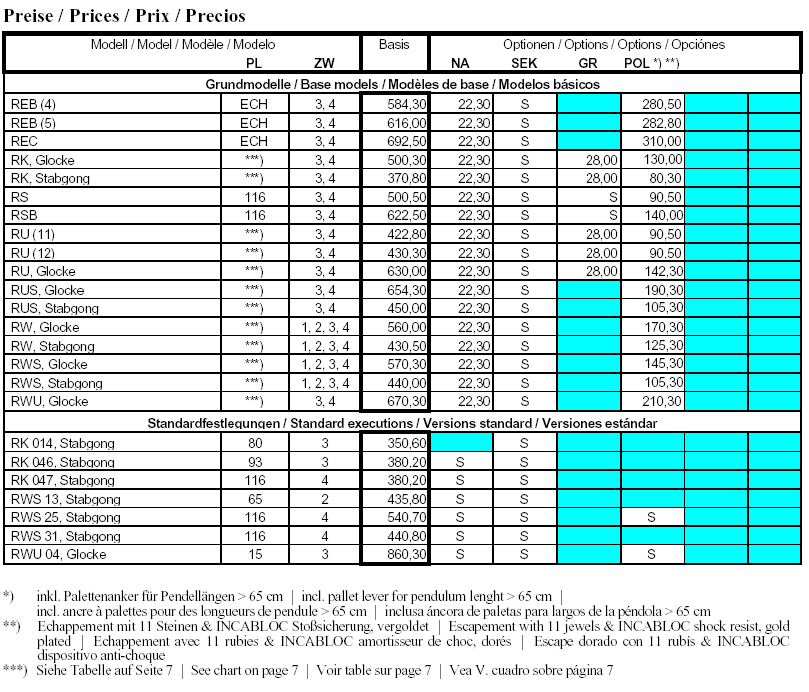

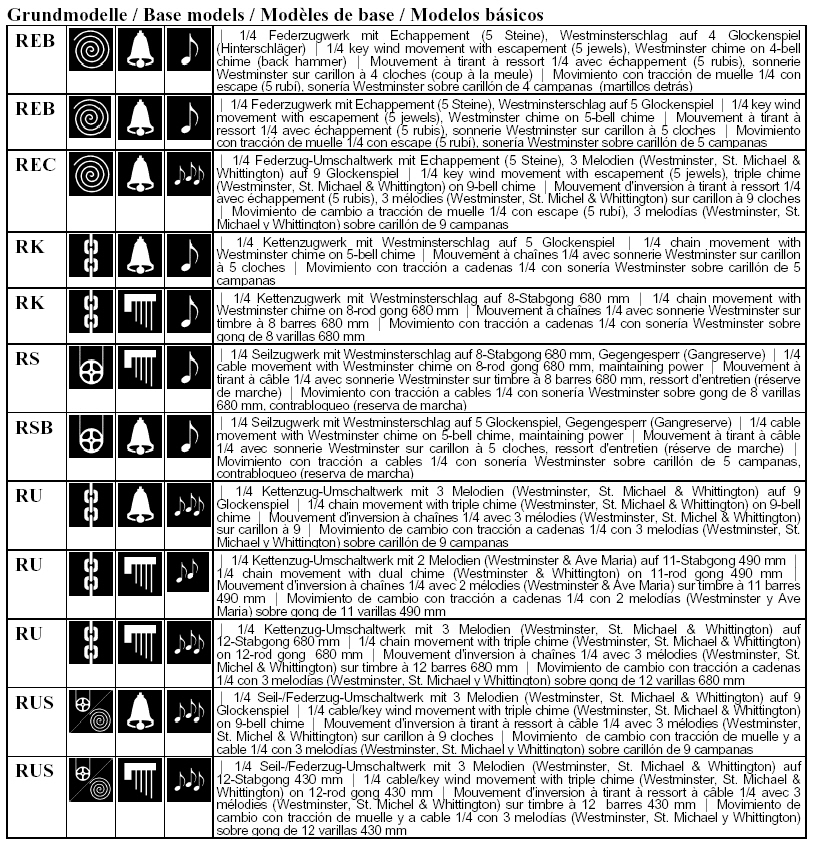

	Base Models Options

Select No.	Model	Chimes Sound On	Prices GB Pounds	SEK	GR	NA	POL	ZW Hand Shaft Options	Pendulum Options
Select No.		Chimes Sound On	Prices GB Pounds	True Second		Auto Night Off	Polished Execution	ZW Hand Shaft Options
8	REB (4)	Bells (4)	596.58	Standard		25.10	278.59	3, 4	Balance
9	REB (5)	Bells (5)	628.62	Standard		25.10	289.41	3, 4	Balance
10	REC	Bells (9)	707.2	Standard		25.10	314.31	3, 4	Balance
11	RK	Bells (5)	510.86	Standard	28.57	25.10	132.25	3, 4	1 to 26
12	RK	Rod Gong (8)	375.14	Standard	28.57	25.10	82.25	3, 4	1 to 26
13	RS	Rod Gong (8)	507.18	Standard	Standard	25.10	92.86	3, 4	3 to 8
14	RSB	Bells (5)	635.77	Standard	Standard	25.10	142.87	3, 4	3 to 8
15	RU	Bells (9)	432.28	Standard	28.57	25.10	92.86	3, 4	1 to 26
16	RU (11)	Rod Gong (11)	439.42	Standard	28.57	25.10	92.86	3, 4	1 to 26
17	RU (12)	Rod Gong (12)	642.91	Standard	28.57	25.10	146.54	3, 4	1 to 26
18	RUS	Bells (9)	668.01	Standard		25.10	192.87	3, 4	1 to 26
19	RUS	Rod Gong (12)	457.18	Standard		25.10	107.15	3, 4	1 to 26

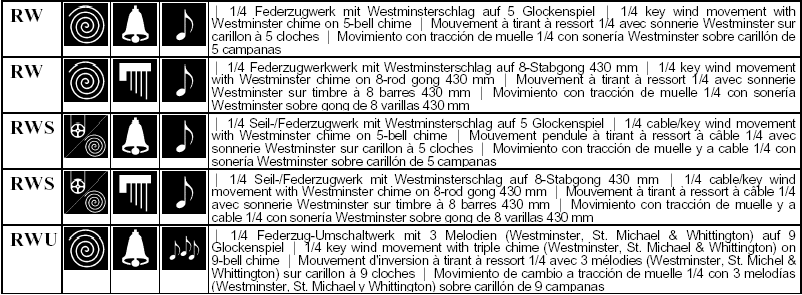

20	RW	Bells (5)	571.48	Standard		25.10	175.12	1, 2, 3, 4	1 to 26
21	RW	Rod Gong (8)	435.75	Standard		25.10	125.11	1, 2, 3, 4	1 to 26
22	RWS	Bells (5)	582.29	Standard		25.10	157.15	1, 2, 3, 4	1 to 26
23	RWS	Rod Gong (8)	442.89	Standard		25.10	107.15	1, 2, 3, 4	1 to 26
24	RWU	Bells (9)	682.3	Standard		25.10	210.83	3, 4	1 to 26
