Kieninger Clock P-Movements 1/2 hour

Kieninger P-Werke (1/2 Stunde)

Kieninger P-Movements (1/2 hour)

Kieninger P-Mouvements (demi-heure) / Kieninger P-Movimientos (media hora)

Allgemeine Merkmale / General features / Caractéristiques générales / Características generales

Platinenmaß 114 x 99 x 2,0 mm, Federzugwerke mit 4 Bronze-Bouchons (Beisatzräder) und Sicherheits- Aufzugsgesperr, Tischuhrversion

mit Echappement (Schweizer Ankergang), Pendelversion mit Kieniramic7 Massivanker mit ruhender Hemmung (Graham) und

Ankerautomatik, Schlagabschaltung, Frontaufzug, ohne Werkbügel

Plate size 114 x 99 x 2,0 mm, key wind movements with 4 bronze bushings (2nd wheel) and anti snap-back system, mantel clock version with escapement (Swiss escapement), pendulum version with Kieniramic7 solid anchor with stationary escapement (Graham) and automatic beat adjustment, strike shut-off, front winding, without upper support brackets

Mesure de platine 114 x 99 x 2,0 mm, mouvements à tirant à ressort avec 4 bouchons en bronze (pignons adjoints) et

dispositif d'encliquetage de sûreté, version d'horloge de table avec échappement (échappement suisse), version de pendule avec Kieniramic7

ancre solide avec échappement de repos (Graham) et dispositif d'ancre automatique, invalidation de sonnerie, mécanisme de remontage

frontal, sans cintre de mécanisme ou support

Medida de platinas 114 x 99 x 2,0 mm, máquina con tracción a muelle con 4 tapones de

bronce (piñones intermedias) y rétén de cuerda, versión de reloj de mesa con escape (escape suiza), versión de la péndola con Kieniramic7

áncora maciza con escape fijo (Graham) y áncora automática, inactivación de toque, mecanismo de cuerda frontal, sin arco de movimientos


Select No.	Model	Type	Disk mm (Bob)	Nominal PL in cms	Beats Per Hour	ZW Hand Shaft No.	Length mm
Select No.	Model	Type	Disk mm (Bob)	Nominal PL in cms	Beats Per Hour	ZW Hand Shaft No.	Length mm
1	P1	Lyre Etched	270	130	3436	1	27.8
2	P2	Lyre	270	130	3436	2	31.8
3	P1	Lyre Etched	270	116	3600	3	35.8
4	P2	Lyre	270	116	3600	4	47.8
5	P3a	Lyre	225	116	3600	5 *)	69.8
6	P3b	Lyre	170	116	3600
7	P6a	Wooden	165	116	3600
8	P6b	Wooden	140	116	3600
9	P2	Lyre	270	100	3800
10	P3a	Lyre	225	100	3800
11	P3b	Lyre	170	100	3800
12	P6a	Wooden	165	100	3800
13	P6b	Wooden	140	100	3800
14	P6c	Wooden	115	100	3800
15	P2	Lyre	270	93	4000
16	P3a	Lyre	225	93	4000
17	P3b	Lyre	170	93	4000
18	P6a	Wooden	165	93	4000
19	P6b	Wooden	140	93	4000
20	P6c	Wooden	115	93	4000
21	P3b	Lyre	170	80	4260
22	P5	Grid	140	80	4260
23	P6b	Wooden	140	80	4260
24	P6c	Wooden	116	80	4260
25	P6d	Wooden	100	80	4260
26	P7a	Metal	80	80	4260
27	P5	Grid	140	72	4500
28	P6b	Wooden	140	72	4500
29	P6c	Wooden	116	72	4500
30	P6d	Wooden	100	72	4500
31	P7a	Metal	80	72	4500
32	P5	Grid	140	65	4725
33	P6b	Wooden	140	65	4725
34	P6c	Wooden	116	65	4725
35	P6d	Wooden	100	65	4725
36	P7a	Metal	80	65	4725
37	P7b	Metal	70	65	4725
38	P6d	Wooden	100	54	5325
39	P6e	Wooden	80	54	5325
40	P7a	Metal	80	54	5325
41	P7b	Metal	70	54	5325
42	P6d	Wooden	100	48	5743
43	P6e	Wooden	80	48	5743
44	P7a	Metal	80	48	5743
45	P6d	Wooden	100	43	6086
46	P6e	Wooden	80	43	6086
47	P7a	Metal	80	43	6086
48	P6e	Wooden	80	35	6750
49	P7a	Metal	80	35	6750
50	P7b	Metal	70	35	6750
51	P7c	Metal	48	35	6750

	Standard Executions

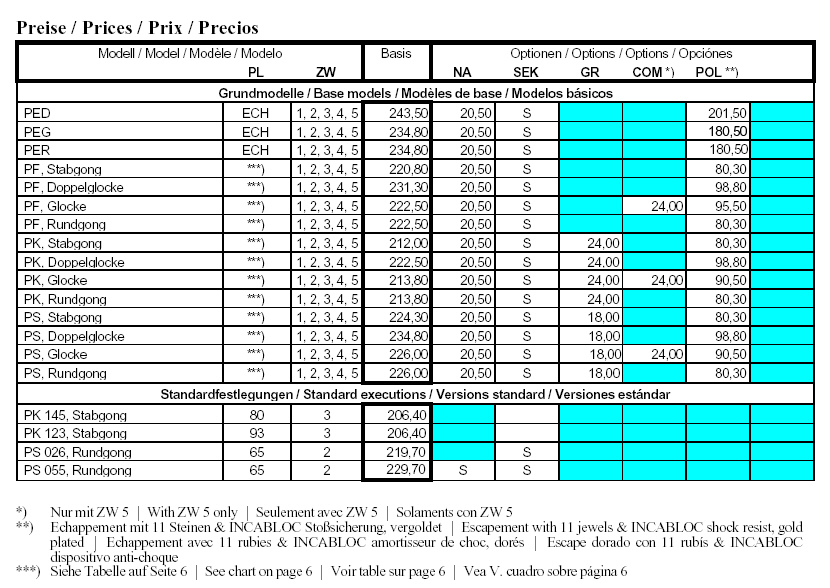

Select No.	Model	Chimes Sound On	Prices GB Pounds	SEK	GR	NA	COM**)	POL	ZW Hand Shaft Length mm	Pendulum Options
Select No.		Chimes Sound On	Prices GB Pounds	True Second	Maintaining Power	Auto Night Off	Comtoise Movement	Polished Execution	ZW Hand Shaft Length mm	Pendulum Options
1	PK 145	Rod Gong (3)	217.16	Standard					35.8	21 to 26
2	PK 123	Rod Gong (3)	217.16	Standard					35.8	15 to 20
3	PS 026	Coil Gong	244.30	Standard					31.8	32 to 37
4	PS 055	Coil Gong	264.71	Standard		Standard			31.8	32 to 37

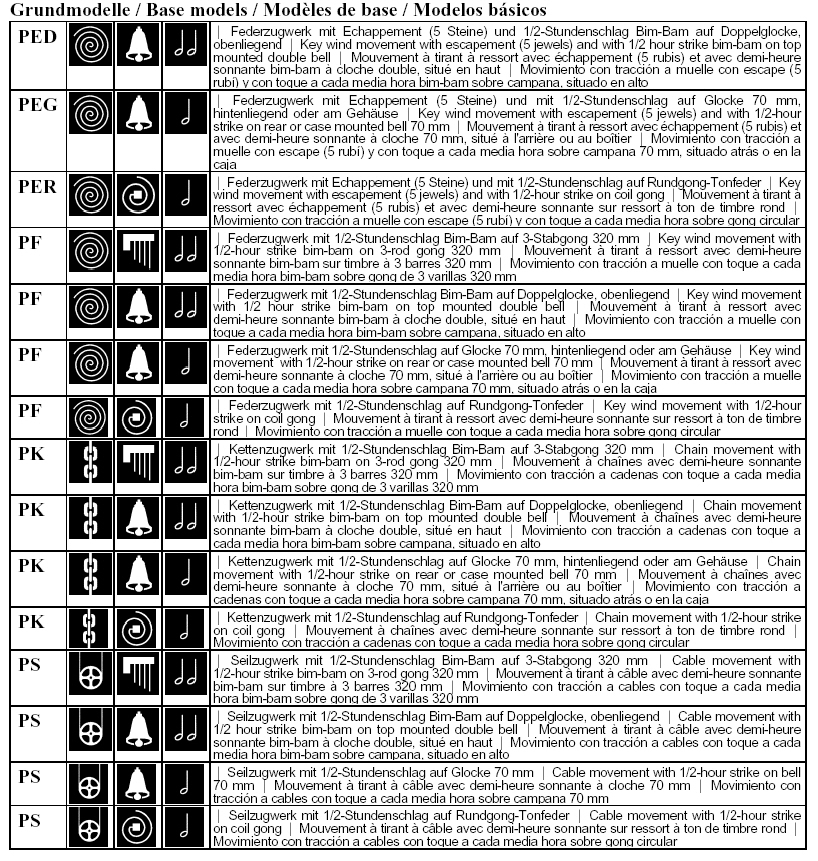

	Base Models Options

Select No.	Model	Chimes Sound On	Prices GB Pounds	SEK	GR	NA	COM*)	POL	ZW Hand Shaft Options	Pendulum Options
Select No.		Chimes Sound On	Prices GB Pounds	True Second	Maintaining Power	Auto Night Off	Comtoise Movement	Polished Execution	ZW Hand Shaft Options	Pendulum Options
5	PED	Double Bell	292.88	Standard		21.43		207.16	1, 2, 3, 4, 5	Balance
6	PEG	Single Bell	275.12	Standard		21.43		196.54	1, 2, 3, 4, 5	Balance
7	PER	Coil Gong	275.12	Standard		21.43		185.73	1, 2, 3, 4, 5	Balance
8	PF	Rod Gong (3)	246.55	Standard		21.43		85.25	1, 2, 3, 4, 5	1 to 2 32 to 51
9	PF	Double Bell	267.98	Standard		21.43		103.68	1, 2, 3, 4, 5	1 to 2 32 to 51
10	PF	Single Bell	250.02	Standard		21.43	28.57	92.86	1, 2, 3, 4, 5 *)	1 to 2 32 to 51
11	PF	Coil Gong	250.02	Standard		21.43		82.25	1, 2, 3, 4, 5	1 to 2 32 to 51
12	PK	Rod Gong (3)	228.59	Standard	28.57	21.43		82.25	1, 2, 3, 4, 5	1 to 41
13	PK	Double Bell	250.02	Standard	28.57	21.43		103.68	1, 2, 3, 4, 5	1 to 41
14	PK	Single Bell	232.26	Standard	28.57	21.43	28.57	92.86	1, 2, 3, 4, 5 *)	1 to 41
15	PK	Coil Gong	232.26	Standard	28.57	21.43		82.25	1, 2, 3, 4, 5	1 to 41
16	PS	Rod Gong (3)	253.69	Standard	17.96	21.43		82.25	1, 2, 3, 4, 5	1 to 41
17	PS	Double Bell	275.12	Standard	17.96	21.43		103.68	1, 2, 3, 4, 5	1 to 41
18	PS	Single Bell	257.16	Standard	17.96	21.43	28.57	92.86	1, 2, 3, 4,5 *)	1 to 41
19	PS	Coil Gong	257.16	Standard	17.96	21.43		82.25	1, 2, 3, 4, 5	1 to 41
